solar street lights

Street Lights

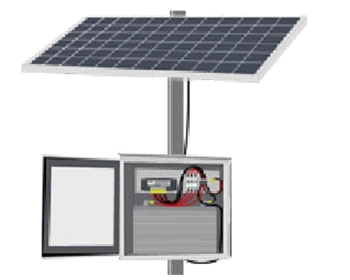

These systems come complete with a Solar Electric Power Assembly. These power assemblies are sized by the lamp power consumption times the hours of operation and takes into account how much sun is available in a geographic area. Each self contained power assembly uses the best quality solar modules which are bonded into a single array with sealed GEL batteries and all control electronics. The fixture lamp choices are 20 to 60 Watts using high power LED lamps.



GK-518	GK-518F (with 24V/300W Wind Turbine)

Features:

High quality PV modules.

LED light span more than 50,000 hours.

Luminous: 100-110 Lm/w; Color Temp.: 6500K.

Battery enclosure integrated with PV mount.

Compartment IP65 design, die cast and waterproof.

Easy installation, plug and play technology.

Street lamp casing is dedicated faceted optics to optimize beam control and maximize light output.

Using smart lighting control system to enhance light output performance, including timer control, light control, half power output control.

Maintenance-free AGM battery bank and 3-5 days power reserve

Model #	Pole Height	PV Module	LED Lamp	Battery	Install Distance
GK-518	6.2m (20.3ft)	120W	35W	12V/150Ah	25-30M / 85-100ft
GK-519-5	5m (14.5ft)	100W	30W	12V/100Ah	20-25M / 65-82ft
GK-518F	6.2m (20.3ft)	120W	35W	12V/150Ah	25-30M / 85-100ft

Benefits of Solar Lighting:

• Eliminates trenching or running power to lights

• 100% energy independent

• 4-5 days of battery storage (autonomy) standard

• Meets 130 MPH wind force requirements

• High quality PV modules with TUV/UL certification

• High brightness LED lamp, 100-110 lm/w Luminous,

with Color temps. 6,500°K

• Over 50,000 hour lifespan for LED

• Compartment IP65 design, die cast and waterproof

• Using smart lighting control system to enhance light

output performance, including timer control, light

control, half power output control

• Easy installation, plug and play

• Not subject to power outages

Model #	Lamp Image	Pole Height	PV Module	LED Lamp	Battery
GK-850		8m 26.2ft	240W	60W (6600lm)	12V/200Ah
GK-750		7m 23ft	160W	42W (4620lm)	12V/150Ah

Solar Pathway Light 519

solar pathway light 519

	PRODUCT NAME	Solar Pathway Light

	Model GK - 519


MOQ	20 sets

Price	2112.00 each

SPECIFICATION
Solar Panel	80W, mono or poly crystalline solar panel.
Light Source	20W High Power LEDs
Pole	4.3M (14.1ft) high steel pole with hot galvanized and paint finish
Controller	Intelligient solar charge controller
Battery	12V/65Ah, Maintanence free Lead Acid battery
Accessories	Waterproof battery box, brackets, wires, fastening pieces, foundation kits
Working Time	10-12 hours/day, 3~4 overcast sky days backup, dim brightness is availabe
	5 hours @ 100% brightness, 5 hours @ 50% brightness
STANDARD FEATURES
Solar Panel	10 years performance guarantee on 90%, 25 years performance guarantee on 80%
Light Source	Up to 50,000 hours long life time, 2 years warranty
Pole	Up to 25 years long life time, 15 years warranty
Controller	dusk until dawn operation or timed ON/OFF operation, 2 years warranty
Battery	maximum life of up to 5~7 years, 3 years warranty

PACKING
1) standard carton boxes.
2) Brackets & poles are packed with air bulb film or polywoven film & wool packaging felt.

Solar Street Light 518

	PRODUCT NAME	Solar Street Light

	Model	GK-518

	MOQ	10 sets

	Price	$3412.00 each

	SPECIFICATION
	Solar Panel	120W, mono or poly crystalline solar panel.
	Light Source	36W High Power LEDs
	Pole	6.2M (20.3ft) high steel pole with hot galvanized and paint finish
	Controller	Intelligient solar charge controller
	Battery	12V/150Ah, Maintanence free Lead Acid battery
	Accessories	Waterproof battery box, brackets, wires, fastening pieces, foundation kits
	Working Time	10-12 hours/day, 3~4 overcast sky days backup, dim brightness is availabe
		5 hours @ 100% brightness, 5 hours @ 50% brightness
	STANDARD FEATURES
	Solar Panel	10 years performance guarantee on 90%, 25 years performance guarantee on 80%
	Light Source	Up to 50,000 hours long life time, 2 years warranty
	Pole	Up to 25 years long life time, 15 years warranty
	Controller	dusk until dawn operation or timed ON/OFF operation, 2 years warranty
	Battery	maximum life of up to 5~7 years, 3 years warranty

	PACKING
	1) standard carton boxes.
	2) Brackets & poles are packed with air bulb film or polywoven film & wool packaging felt.

PRODUCT NAME	Solar Pathway Light

Model	GK-560

MOQ 20
Ex-w Price	$
	2115.00
SPECIFICATION
Solar Panel	60W, mono or poly crystalline solar panel.
Light Source	16W High Power LEDs
Pole	4.3M (14.1ft) high steel pole with hot galvanized and paint finish
Controller	intelligient solar charge controller
Battery	12V/65Ah, Maintanence free Lead Acid battery
Accessories	Waterproof battery box, brackets, wires, fastening pieces, foundation kits
Working Time	10-12 hours/day, 3~4 overcast sky days backup, dim brightness is availabe
	5 hours @ 100% brightness, 5 hours @ 50% brightness
STANDARD FEATURES
Solar Panel	10 years performance guarantee on 90%, 25 years performance guarantee on 80%
Light Source	Up to 50,000 hours long life time, 2 years warranty
Pole	Up to 25 years long life time, 15 years warranty
Controller	dusk until dawn operation or timed ON/OFF operation, 2 years warranty
Battery	maximum life of up to 5~7 years, 3 years warranty

PACKING
1) standard carton boxes.
2) Brackets & poles are packed with air bulb film or polywoven film & wool packaging felt.
